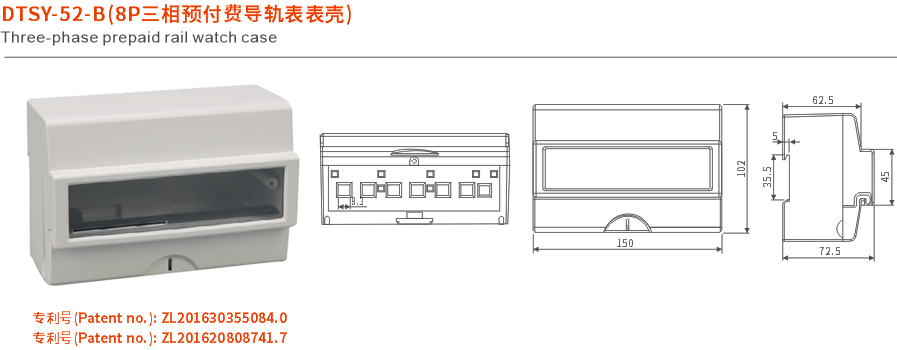

技术参数

◎规格：压接式端钮盒，小A(1.5mm铜片)、中A(2.0mm铜片)、

   大A(2.5mm铜片)

◎脉冲信号线：11-17带线

◎电流配置：1.5(6)A带1-7组辅助端口

                      10(40)A带1-7组辅助端口

                      20(80)A带1-7组辅助端口

◎说明：原创设计，采用电能表接线方式，方便快捷，成本大幅

    度降低，防尘防潮设计，另可配各种阻值互感器。

TECHNICAL PARAMETERS

◎Specifications: crimp-type terminal box, small A(1.5mm sheet copper)

    middle A (2.0mm sheet copper), large A (2.5mm sheet copper)

◎pulse signal lines: 11-17 lines

◎Current configuration: 1.5(6) A with 1-7 sets of auxiliary ports

                                       10(40) A  with 1-7 sets of auxiliary ports

                                       20(80) A  with 1-7 sets of auxiliary ports

◎Note: with original design, it uses energy meter wiring method which

    is convenient and cost saving, dust-proof design can be equipped

    with a variety of resistance shunt.
