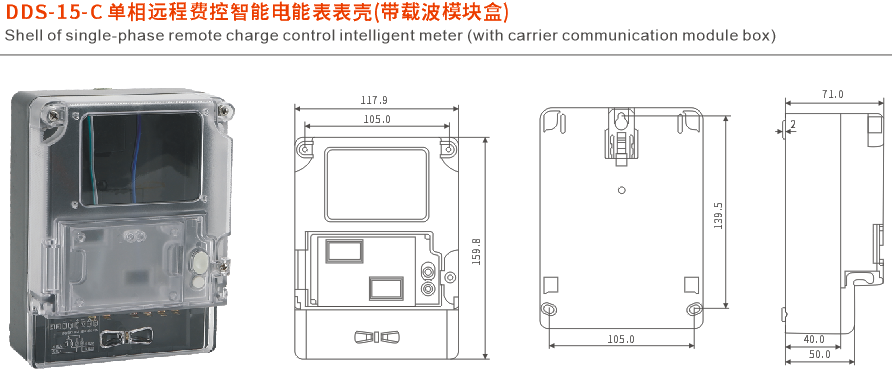

DDS-15-C單相遠程費控智能電能表表殼
2169 2022-04-13
技術參數
◎規格：端鈕盒銅條，小A(8×10.5)、中A(10×12)、大A(11×13)
◎脈沖信號線：2、4、6、8線
◎電流配置：1.5（6）A帶1-8個輔助端口
10（40）A帶1-8個輔助端口
20（100）A帶1-8個輔助端口
◎說明：09年版南網型表殼，罩殼帶開蓋記錄柱、有輪顯及編程
按鍵。
TECHNICAL PARAMETERS
◎Specifications: copper bar of terminal box, small A(8×10.5), middle
A(10×12),large A(11×13)
◎Pulse signal lines:2,4,6,8,lines
◎Current configuration: 1.5(6)A with 1-8 sets of auxiliary ports
10(40)A with 1-8 sets of auxiliary ports
20(100)A with 1-8 sets of auxiliary ports
◎Note:the shell of 2009 southern grid meter, has recording column of
shell open, it also has slideshow and programming buttons.
