技术参数

◎规格：端钮盒铜条，小A(8×10.5)、中A(10×12)、大A(11×13)

◎脉冲信号线：全开带线或铜件，也可指定端口位置

◎电流配置：1.5（6）A带16个辅助端口

                      10（40）A带16个辅助端口

                      20（100）A带16个辅助端口

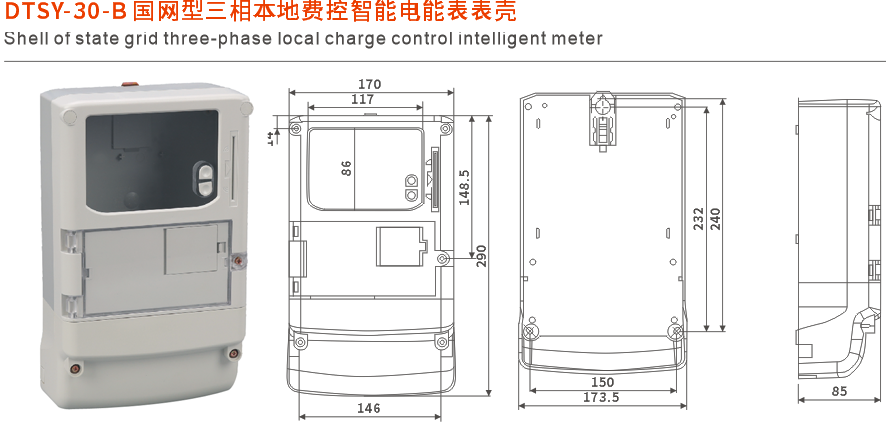

◎说明：13年版国网三相表壳，带轮显及编程按键，电池盒外置

    可更换，罩壳、防窃盖带开盖记录柱。

TECHNICAL PARAMETERS

◎Specifications: copper bar of terminal box, small A(8×10.5), middle

    A(10×12),large A(11×13)

◎Pulse signal lines: fully-open with line or copper piece, it can also be

◎specified with port position

    Current configuration: 1.5(6)A with 16 sets of auxiliary ports

                                        10(40)A with 16 sets of auxiliary ports

                                        20(100)A with 16 sets of auxiliary ports

◎Note: the shell of 2013 version state grid three-phase meter has

    slideshow and programming buttons, the external battery box can

    be replaced, the shell and anti-thett cover have recording column

    of shell open.
